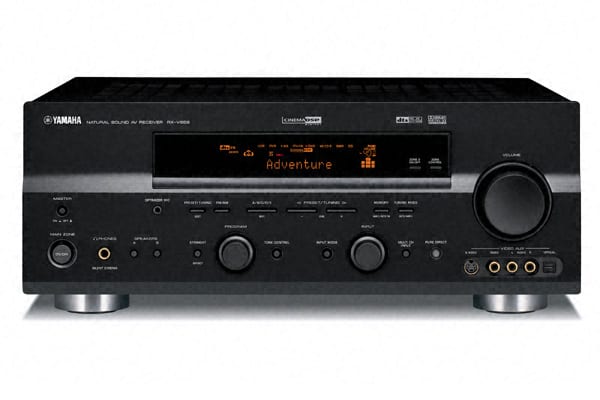

Yamaha RX-V659

Home Cinema Receiver

7.1-channel receiver designed for extremely high sound quality and
featuring CINEMA DSP and iPod compatibility using the optional YDS-10.

7.1-channel, powerful surround sound: 150W x 7 Max
Digital ToP-ART and High Current Amplification
Pure Direct for High Quality Sound Reproduction
High Sound Quality Circuit Design
Burr-Brown 192 kHz/24-Bit DACs for All Channels
Compatible with iPod via optional Yamaha YDS-10
Compressed Music Enhancer
YPAO sound optimization
On-screen display
HDTV compatible 3 component video inputs
Component video up-conversion
Digital video processing with TBC (Time Base Corrector)
Quad-Field CINEMA DSP and 14 surround programmes
Night Listening Enhancer (Cinema/Music) and SILENT CINEMA
Audio Delay for adjusting lip-sync (0–160ms)

Digital ToP-ART
Dolby Pro-Logic, Dolby Pro-Logic II, Dolby Pro-Logic IIx
Dolby-Digital, Dolby Digital EX
DTS Neo:6, DTS Digital Surround
DTS-ES, DTS-ES Discrete, DTS 96/24
Yamaha Parametric Room Acoustic Optimizer (YPAO) incl. Microphone
SILENT CINEMA
Virtual CINEMA DSP
Quad-Field CINEMA DSP
DSP-Programs: 14
Surround Programs: 29
192 kHz/24-Bit-D/A-Convertor: Burr Brown
Audio Delay
MultiRoom Function: Zone 1 , Zone 2
Night Listening Enhancer
Compressed Music Enhancer
Audio Mute: Full, -20dB
Center GEQ: 5 band
iPod Dock
Component Video Terminals (in/out): 3 in / 1 out
Output: 1x optisch, 2xAV mit S-Video/FBAS, 1xKomponente, 1xAudio analog, Zone 2, remote in/out, Trigger
Speaker Selector: A / B
Subwoofer Uitgang
Pre Out
8-Channel external decoder input
Phono Input
Front Panel Input Terminal: 1 x optisch, 1 x Audio , 1 x composite, 1 x S-Video
Inputs: 5xAV inkl. S-Video/FBAS+2xAudio+4xopt. Digital+2xkoax.
On-Screen Display
Video Conversion
Auto Preset Afstemming
DIN Norm Uitgangsvermogen (4 ohm, 1kHz, 0,7% THV): 7 x 150W
Standard Power (8 ohms, 20-20.000Hz): 7 x 100W
Lineaire Demping
Dempings Factor (8 ohm, 20–20.000 Hz): 120
Frequentiebreik: 10 Hz—100 kHz +0, -3 dB
Signaal/Ruis-Afstand (CD): 100 dB
Totale Harmonische Vervorming: 0,06%
Crossover Frequency: 40,60,80,90,100,110,120,160,200Hz
RDS ( Radio-Data-System)
Preset Station Memory: 40
FM selectiviteit: 70 dB
FM signaal/ruis-afstand: 76dB mono
FM bruikbare gevoeligheid: 1,0µV
Remote Control Unit
Accessories: Mic, Owners Manual, Battery, Remote, AM & FM Antenna
