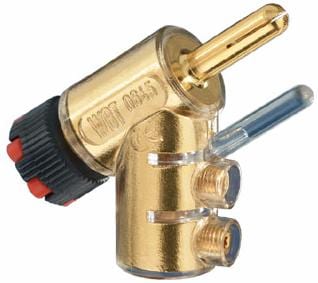

WBT Banana 0645

Banaanplug
Midline, Safety-L

Locking banana plug
CE and IEC compliant
Suitable for bi-wiring
Crimping with WBT double Torx screw system
Compact and cable-friendly
24 carat gold-plating

A banana plug of the extra class. The WBT-0645 is approved worldwide as a loudspeaker connector due to the Safety Pin construction first developed by WBT. It is fully insulated and exerts a high clamping force by means of the expandable centre spike which can be activated by screwing the spindle inwards. In this way a firm fixing of the plug and a continually high contact pressure are guaranteed. The clamping force and high copper content of the alloy give the WBT-0645 a high conductivity and precise signal transmission.

Angled banana plug with WBT Midline quality. A robust construction from a copper alloy and 24 carat gold-plating mean that any oxidation which could influence signal transmission is impossible. Despite the sloped angle, the WBT-0645 is fabricated from one piece so that any unnecessary transition resistance is avoided.

The special plus: thanks to the sloped angle, the WBT-0645 is extremely compact and simultaneously cable friendly since the slope of the cable leads to the ground without kinking. The WBT-0645 is stackable for bi-wiring if required. The back of the spindle is designed so that a further WBT-0645 can be inserted into it. The WBT-0645 can be easily operated by hand

The WBT-0645 is designed for the crimp connection technique. The two designated Torx screws (T.6) provide, with their special fine thread, for a durable connection of the crimped cable end, as well as a reliable strain relief.

If using the crimping connection with your WBT-0645 it can be used time and again since the valuable protective surface of the plug will not be damaged by soldering.
