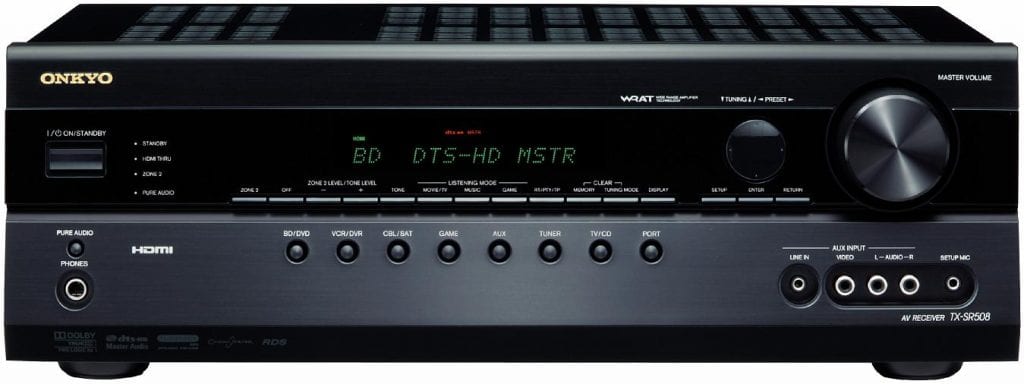

Onkyo TX-SR508 zwart

A/V-receiver
7.1 channel Home Cinema receiver

At Onkyo, our mission is to deliver outstanding audio and video quality to your
home, no matter what budget you’re on. With the 7.1-channel TX-SR508, you get an
entry-level home cinema centerpiece built to unleash the potential of your
favorite entertainment sources. The TX-SR508 arrives brimming with processing
and connectivity features previously unheard of at this level: Four 3D-ready
HDMI® 1.4 inputs for connecting your high-definition sources; Studio
master-quality HD audio formats from Dolby and DTS; Dolby® Pro Logic® IIz for
new surround-sound possibilities; Powered Zone 2 and bi-amping for more speaker
flexibility; and a Universal Port and front-side input for connecting
peripherals and portable devices. Meanwhile, Audyssey volume and equalization
technologies ensure comfortable listening and a room-fitting soundstage.
Underpinning it all is decades of Onkyo amplifier expertise in the form of WRAT
(Wide Range Amplifier Technology) and a high-current, low-impedance drive.

Advanced features
HDMI® (Version 1.4 to Support 3D and Audio Return Channel) with Deep Color™,
x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio
CD, Multichannel PCM, and CEC
Dolby® TrueHD, DTS-HD Master Audio™, Dolby® Digital Plus, DTS-HD High-Resolution
Audio™ Decoding
Dolby® Pro Logic® IIz for New Surround Channels
Burr-Brown 192 kHz/24-Bit DACs (PCM1690) for All Channels
Jitter-Cleaning Circuit Technology
Audyssey 2EQ™ for Room Acoustic Correction
Audyssey Dynamic Volume™
Audyssey Dynamic EQ™ for Loudness Correction
Powered Zone 2 and Zone 2 Line-Out for Playback of Separate Source in Another
Room
Overlaid On-Screen Display (OSD) via HDMI

Amplifier features
130 W/Ch at 6 Ohms, 1 kHz, 1 Channel Driven, IEC
WRAT (Wide Range Amplifier Technology)
High-Current Low-Impedance Drive
H.C.P.S. (High Current Power Supply) Massive High Power Transformer
Optimum Gain Volume Circuitry
Bi-Amping Capability

Processing features
Advanced 32-Bit Processing DSP Chip
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG (Role Playing Game)
Music Optimizer™ for Compressed Digital Music Files
Pure Audio Mode
Direct Mode
Double Bass Function
CinemaFILTER™
Non-Scaling Configuration
A-Form Listening Mode Memory
Theater-Dimensional Virtual Surround Function

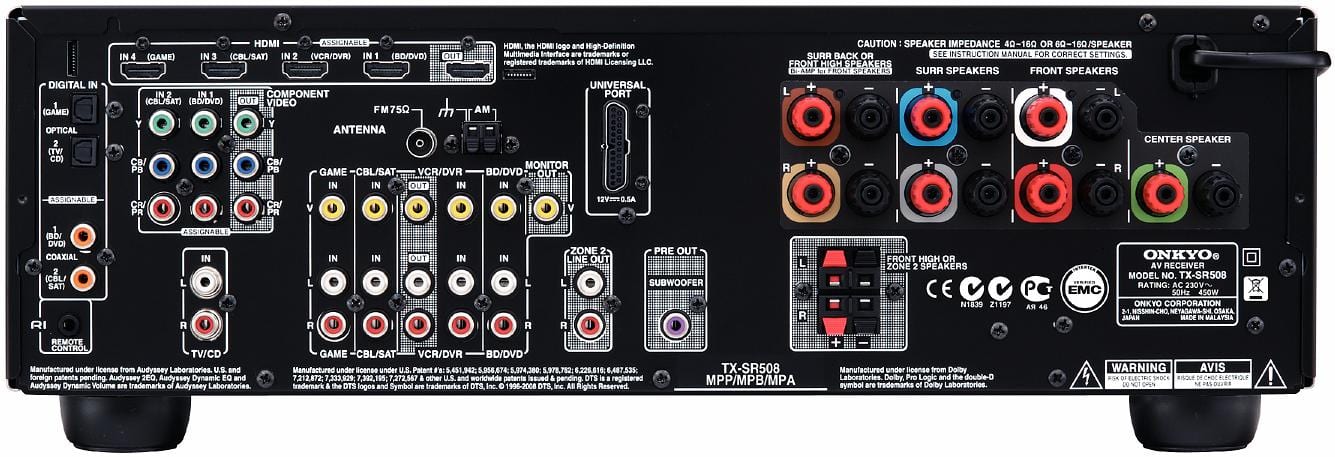

Connection features
Universal Port for Single-Cable Connection of Optional Onkyo Dock for iPhone/iPod
or DAB+ Radio Tuner
Audio and 1080p Video Processing via HDMI (4 Inputs and 1 Output)
HDTV-Capable (720p/1080i) Component Video Switching (2 Inputs and 1 Output)
Front-Panel Audio Input for Portable Devices
Front-Panel Auxiliary A/V Input
4 Digital Inputs (2 Optical and 2 Coaxial)
4 A/V Inputs and 1 Output
Video Output (Monitor)
1 Audio Input
Subwoofer Pre Out
Color-Coded, Banana Plug-Compatible Speaker Posts (Except Front High or Zone 2)
Headphone Jack

Other features
Crossover Adjustment (40/50/60/80/100/120/150/200 Hz)
A/V Sync Control Function (Up to 100 ms in 10 ms Steps)
Tone Control (Bass/Treble) for Front L/R Channels
3-Mode Display Dimmer (Normal/Dim/Dimmer)
Sleep Timer (via Remote)
Battery-Free Memory Backup
RDS (PS/RT/PTY/TP)
40 FM/AM Random Presets
RIHD (Remote Interactive over HDMI) for System Control
Compatible with RI (Remote Interactive) Dock for iPod
Preprogrammed RI (Remote Interactive) Remote Control
